product features:
◆ Self-developed, innovative, modular processing, assembly detection and electron control system, product process control strict control, stable and reliable.
◆ Widely used in welding, spraying, assembly, handling, palletizing, point glue, upper and lower, etc., suitable for automotive, 3C, home appliances, electronics, injection molding, metal, bathroom, toys, ceramics and other services
Comprehensive parameters:
model | PMC-800 | PMC-1000 | PMC-2000 | PMC-1600 | PMC-1700 | PMC-2100 | PMC-2100 | PMC-2600 |
Rated load kg | 5 | 8 | 10 | 10 | 25 | 50 | 80 | 165 |
Maximum working radius mm | 836 | 990 | 2002 | 1580 | 1706 | 2110 | 2110 | 2602 |
Repeat positioning accuracy mm | ± 0.03 | ± 0.03 | ± 0.06 | ± 0.05 | ± 0.06 | ± 0.15 | ± 0.15 | ± 0.25 |
Body weight kg | 38 | 46 | 185 | 85 | 170 | 500 | 510 | 1200 |

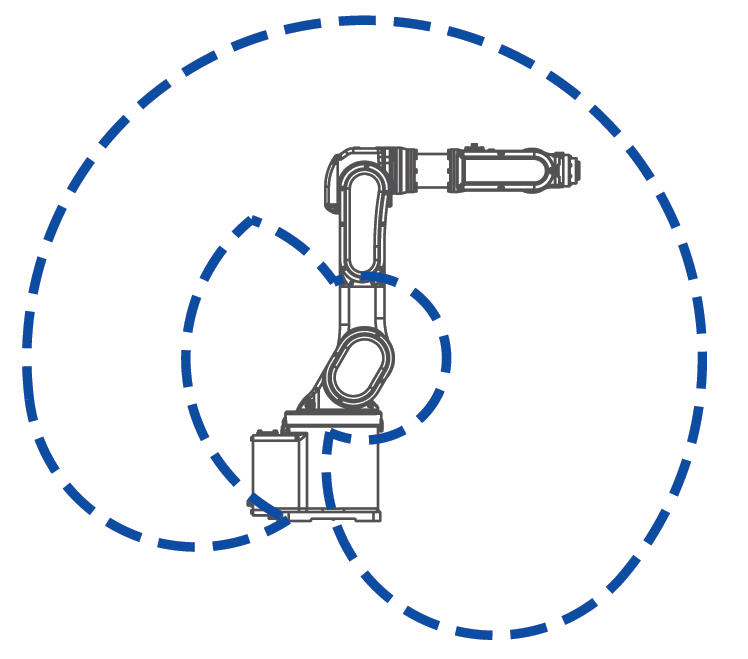

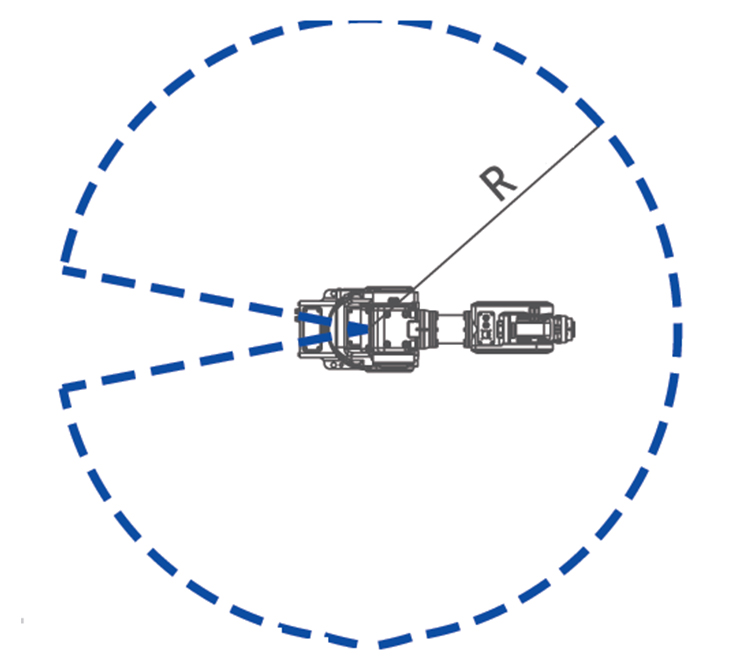

Action range:
 Action range |  Action range |

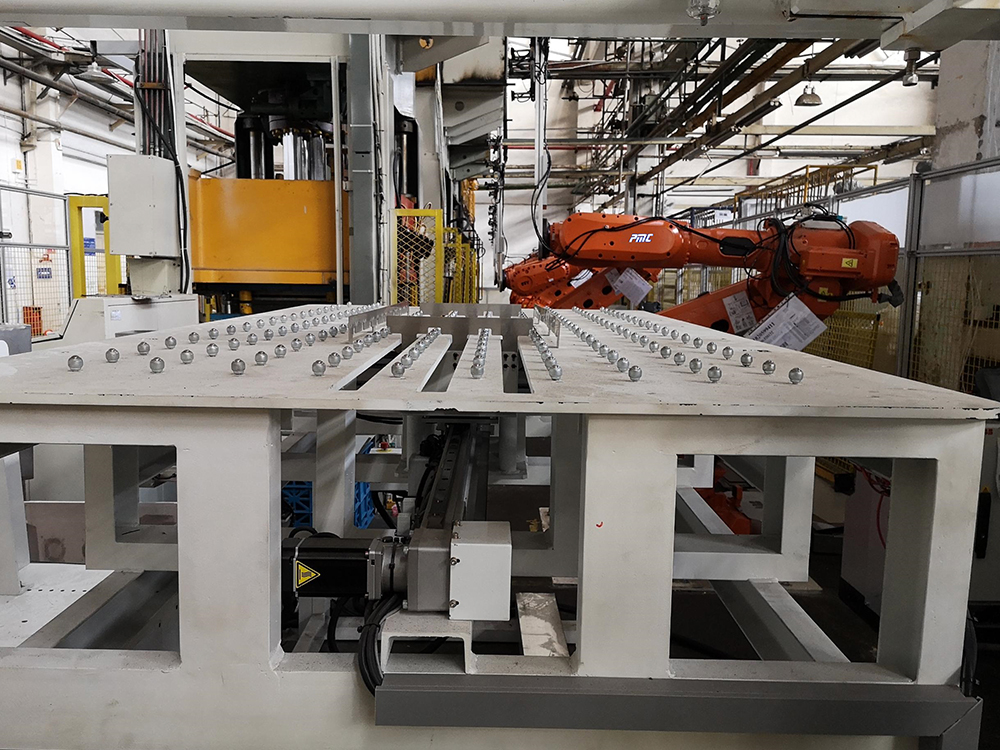

Industry application:
Haier stamping connection
